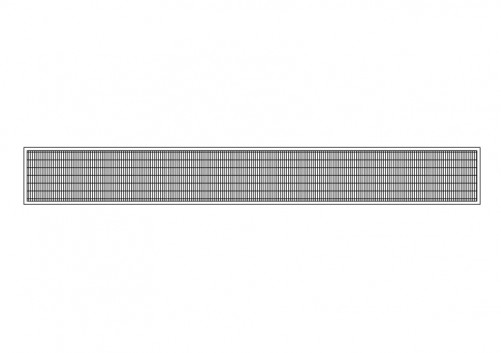

A trench drain (also channel drain, line drain, slot drain, linear drain or strip drain) is a specific type of floor drain containing a dominant trough- or channel-shaped body. It is used for the rapid evacuation of surface water or for the containment of utility lines or chemical spills. Employing a solid cover or grating that is flush with the adjoining surface, this drain is commonly made of concrete in-situ and may utilize polymer- or metal-based liners or a channel former to aid in channel crafting and slope formation. Characterized by its long length and narrow width, the cross-section of the drain is a function of the maximum flow volume anticipated from the surrounding surface. Channels can range from 1 inch (25 mm) to 2 feet in width, with depths that can reach 4 feet (120 cm).
